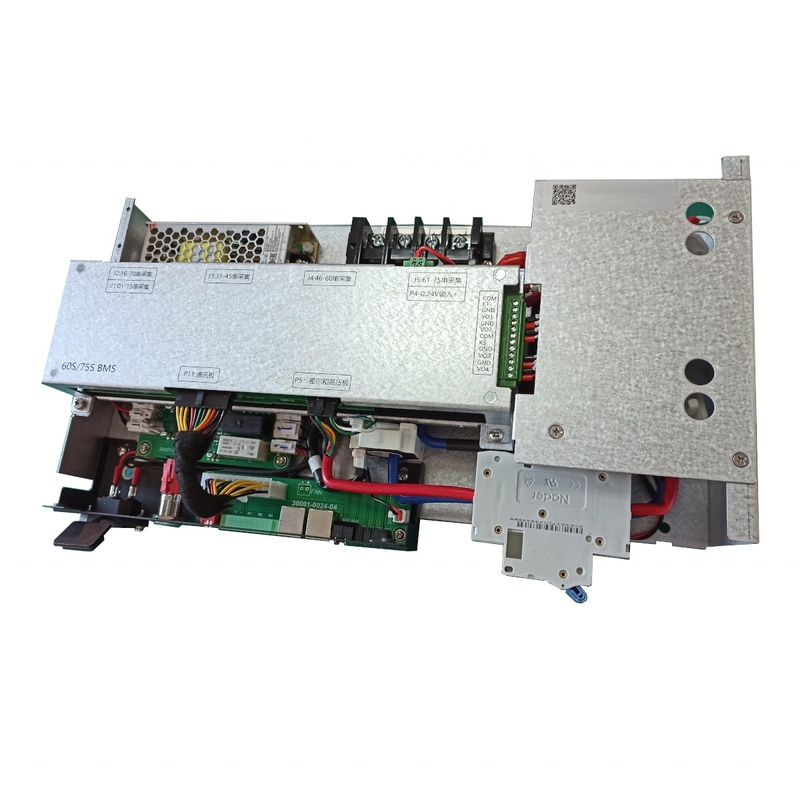

Name: 30S-75S 100A Lithium Battery BMS with CAN RS485 Communication
Brand: Hunan GCE Technology Co.,Ltd
SKU: RBMS07S32S100A
Price: 556.00 USD
Availability: InStock

Productdetails

Plaats van herkomst: Hunan, China

Merknaam: GCE

Certificering: CE/RoHS/UN38.3/MSDS, CE

Modelnummer: RBMS07S32S100A

Betaling & het Verschepen Termijnen

Min. bestelaantal: 2

Prijs: $542-571

Krijg Beste Prijs

Productdetails

Productomschrijving

Markeren:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                100A lithium battery BMS, BMS with CAN RS485 communication, 30S-75S lithium battery BMS


Batterijgrootte:	18650	Gewicht:	8 kg
Huidig:	50A/100A	Spanning:	240V
Snaren:	30-75 jaar	Mededeling:	CAN, RS485
Maat:	410232128 mm	Het laden Verhouding:	99,8%
Ontladingssnelheid:	99,8%	Anodemateriaal:	LFP NMC LTO
De waaier van het systeemvoltage:	120 - 228 V GELIJKSTROOM	Aantal snaren:	jaren '60 (4 x 15 S)
Balansstroom:	100 mA ± 10 mA (enkele cel 3,4V)	Temperatuurnauwkeurigheid:	± 2℃
voltagenauwkeurigheid:	Eencellig ±20mV

Batterijgrootte:	18650
Gewicht:	8 kg
Huidig:	50A/100A
Spanning:	240V
Snaren:	30-75 jaar
Mededeling:	CAN, RS485
Maat:	410232128 mm
Het laden Verhouding:	99,8%
Ontladingssnelheid:	99,8%
Anodemateriaal:	LFP NMC LTO
De waaier van het systeemvoltage:	120 - 228 V GELIJKSTROOM
Aantal snaren:	jaren '60 (4 x 15 S)
Balansstroom:	100 mA ± 10 mA (enkele cel 3,4V)
Temperatuurnauwkeurigheid:	± 2℃
voltagenauwkeurigheid:	Eencellig ±20mV

30S-75S 100A Lithium Battery BMS with CAN RS485 Communication

New Arrival Unique Design 32S 50A 100A Lithium Battery Management System 102.4V BMS for Lifepo4 LTO NCM Lithium Battery Pack

Key Features

Master & Slave all in one design
Efficient, stable and reliable performance
Compact size: W410 × H232 × D128cm
Supports 30S-75S lithium battery packs
Communication protocols: CAN, RS485, Dry Contact

Unique Design

The latest product developed by GCE, unique in the market with master-slave integrated design and relay solution for lithium battery packs.

Specifications

Product Name	Integrated BMS (master slave together in one)
Model no.	RBMS07S60S50A
System voltage range	120 - 228 V DC
Startup mode	DC start (optional AC and DC starter)
Number of battery strings	60 S (4 × 15 S)
Balance type	Passive resistance equalization
Balanced current	100mA ± 10mA (Single cell 3.4V)
Temperature Sampling	12 Battery temperature (4×3), Accuracy: ±2℃
Voltage Sampling	Single cell ±20mV
Communication mode	CAN: 1 channel, RS485: 1 channel, Bluetooth: optional, GPRS: optional
Hall sensor specifications	50A/100A
Operating Temperature	Charging: -10～75℃, Discharging: -20 to 75℃, Storage: -40 to +75℃

Product Features

High integration with less installation space
Long life cycle (>3000 times at 80% DOD)
Environmentally friendly (no heavy metals)
Maintenance free with no memory effect
Internal BMS with full protection
Master and Slave all in one design

Applications

Home storage
Island off-grid energy storage
Micro-grid applications
UPS power supply
Power System 220V DC power supply

FAQ

1. Are you a manufacturer or simply a trading company?

We are a manufacturer, and we sincerely welcome you to visit our factory.

2. Can I get some samples?

Yes, a sample order is available for quality checking and market testing.

3. What kind of cells are applicable to this Battery Management System?

LFP, NMC, LTO

4. How about the delivery time?

The lead-time usually takes about 15 to 20 working days accordingly to the specification of your order and quantity.

5. What are your terms of payment?

Advanced T/T is the main payment term, and other payment terms are negotiable. Please contact us, we'll discuss the details.

6. What are your warranty terms?

We offer a 3-year warranty for RBMS, 1-year warranty for PCB.

12. How to Contact with you?

You can contact with Cara for quotation. Whatsapp&Skype: +8617321496453, Email: cara@hngce.com
